Generator sets | |

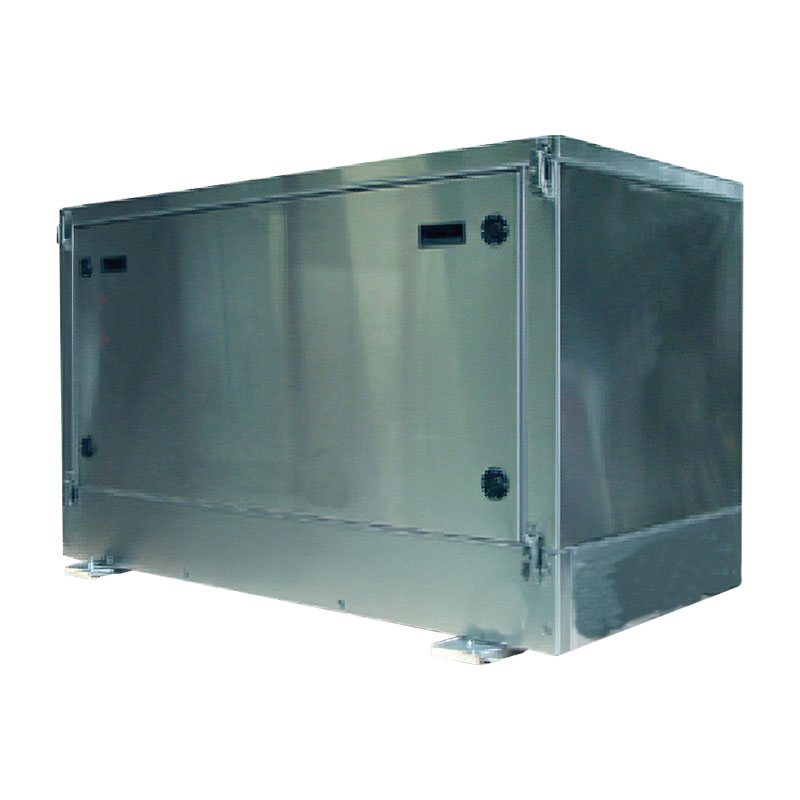

Model | H-GV 8000i |
Rated frequency (Hz) | 50/60 |
Rated voltage (V) | 230/120 |
Waveform distortion rate (%) | ≤3% |
Rated output (KVA) | 6 |
Maximum output (KVA) | 8 |
Rotational speed (rpm) | 2200-2800 |
Noise level (dBa/7m) | 54 |
Dimensions (LxWxH) (mm) | 650*545*600mm |
Net weight (Kg) | 154 |
Engines | |
Engine brands | Kubota |
Engine type | Z482 |
Number of cylinders | Double cylinder |
Discharge volume (CC) | 479 |
Bore x stroke (mm) | 67*68 |
Cooling systems | Indirect water cooling |
Fuels | Light Diesel |
Fuel consumption (L/hr) | 1.2-1.5 |
Lubricating oil capacity (L) | 2.5 |
Control systems | |
Start-up system | One-touch electric start + remote start |
Start the battery | 12VDC |
Remote control panel | With digital display and alarm |
Inverter | Split |
Throttle control | Automatic |
Dampers control | Automatic |
Other functions | |
Overload protection | Yes |
Short circuit protection | Yes |
Temperature protection | Yes |
Oil shortage alarm | Yes |
Petrol oil level alarm | Yes |
Parallel function | Optional |
Automatic changeover switches | Yes |
