Marine 1500/1800RPM Diesel Generators

H-MG35L

description
message to us
FAQ
DOWNLOAD

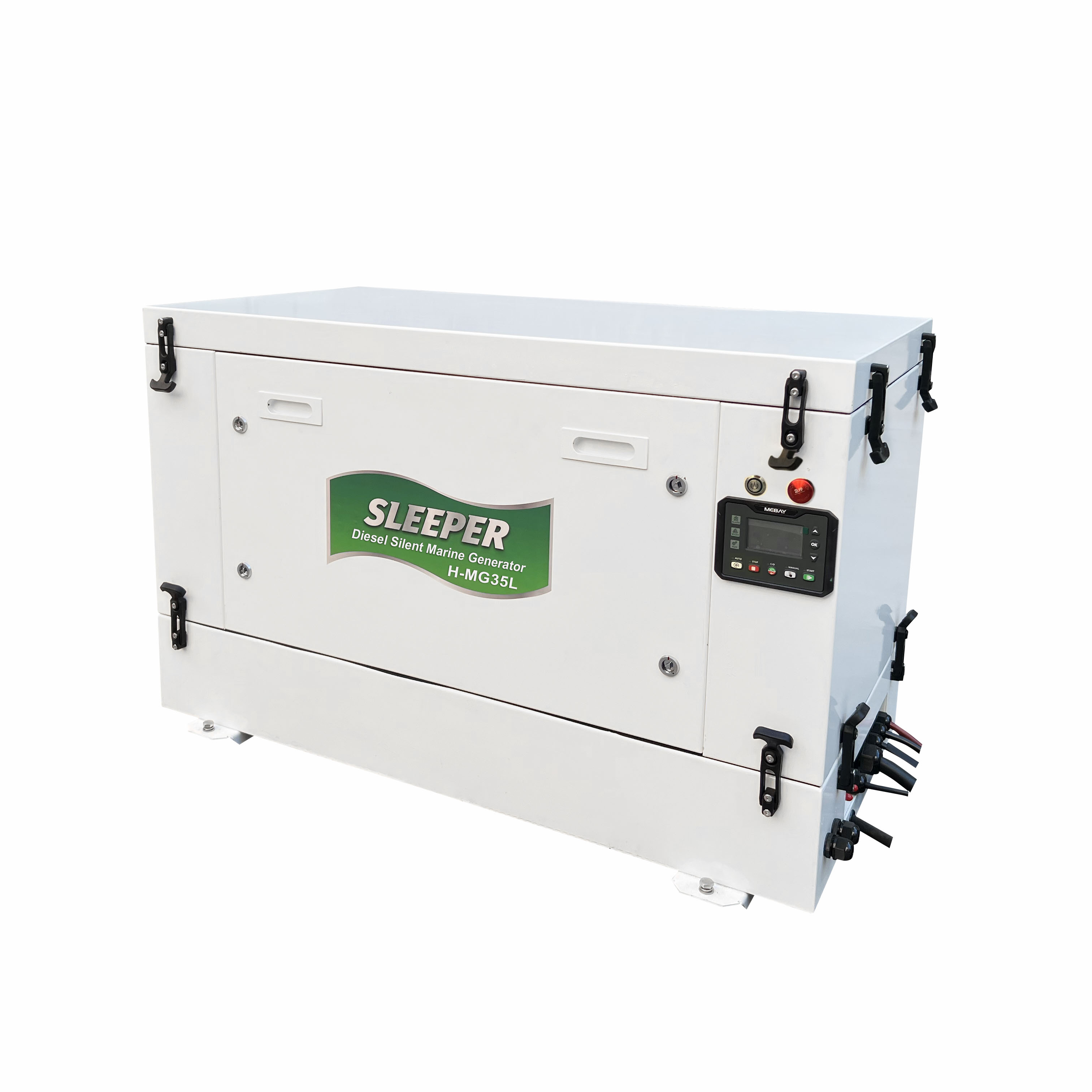

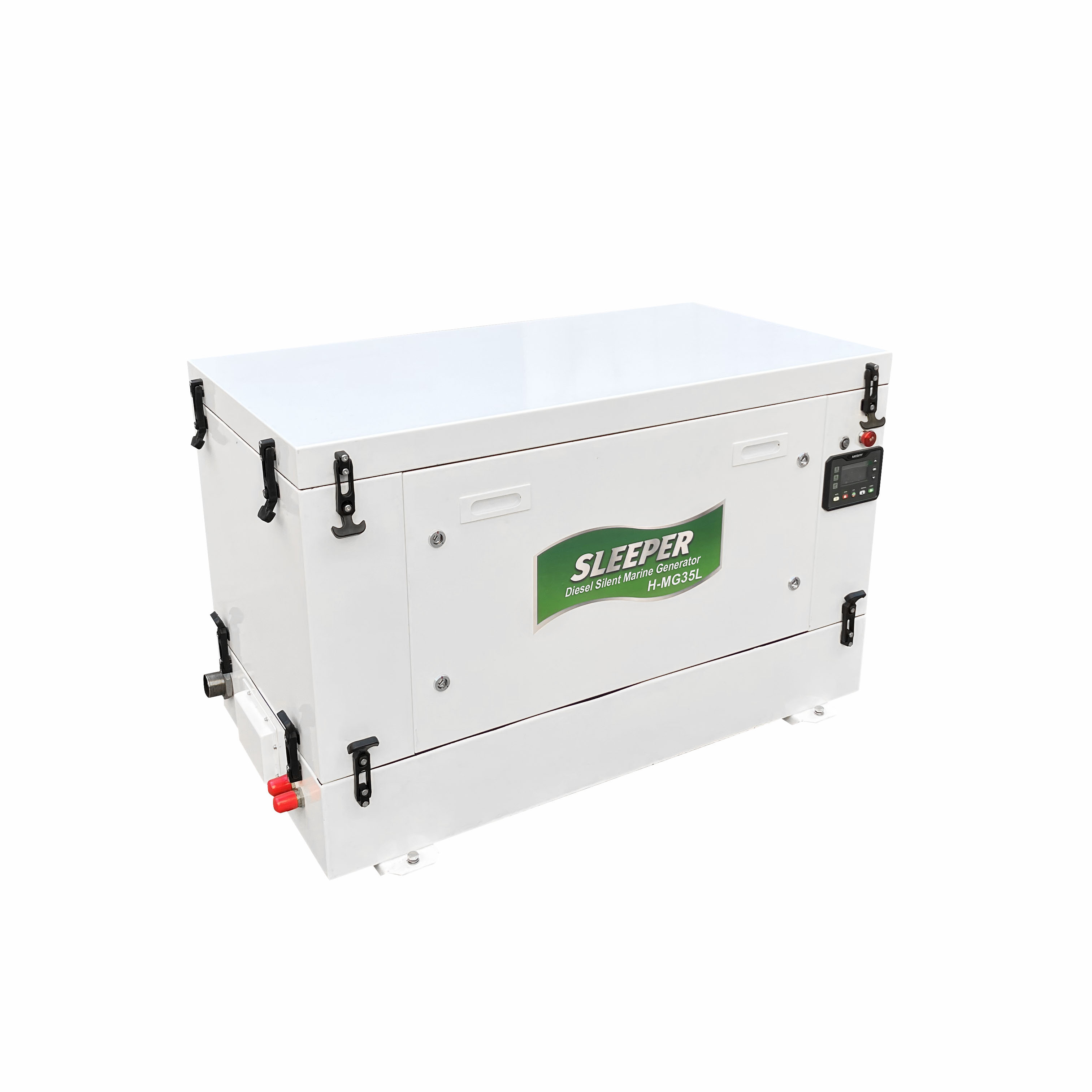

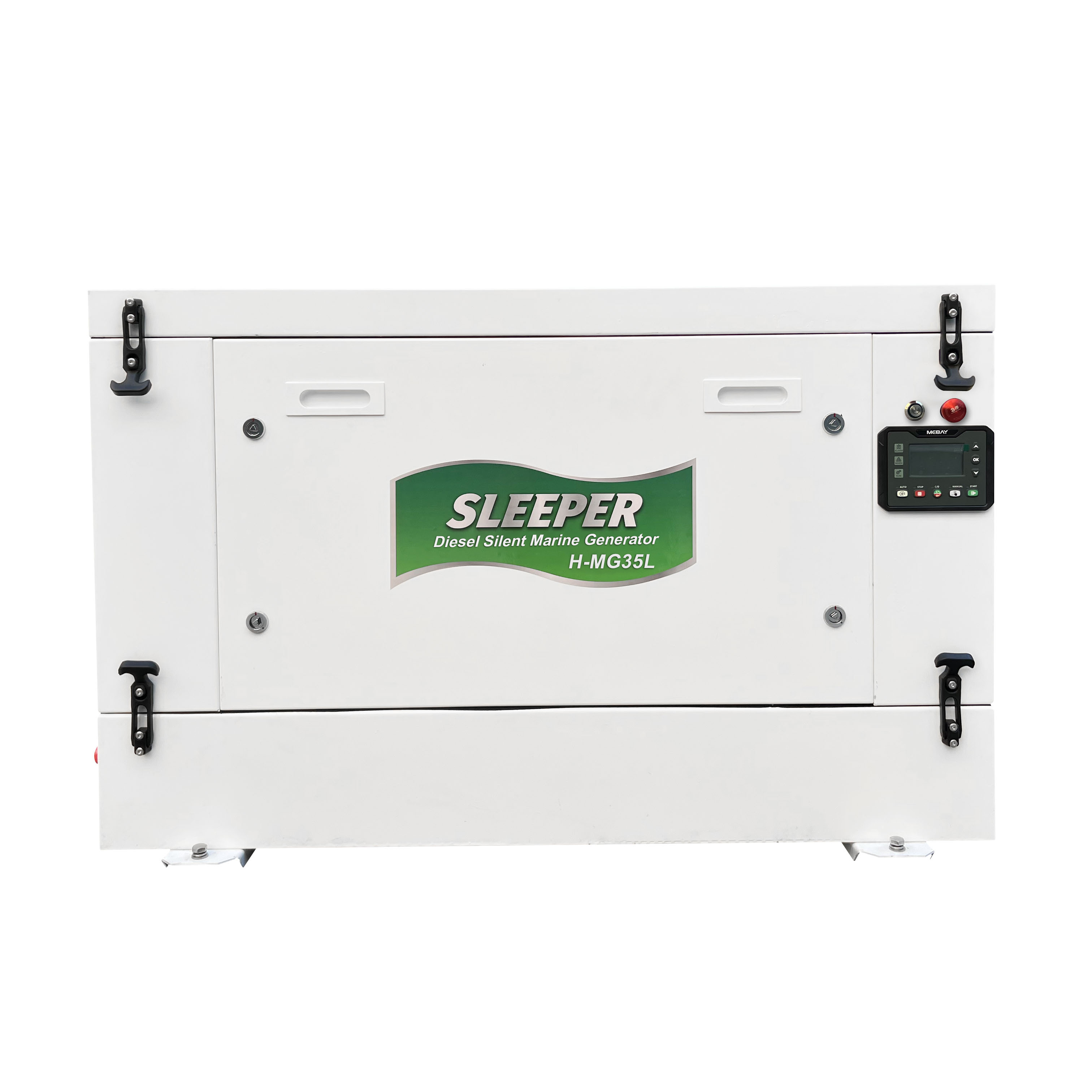

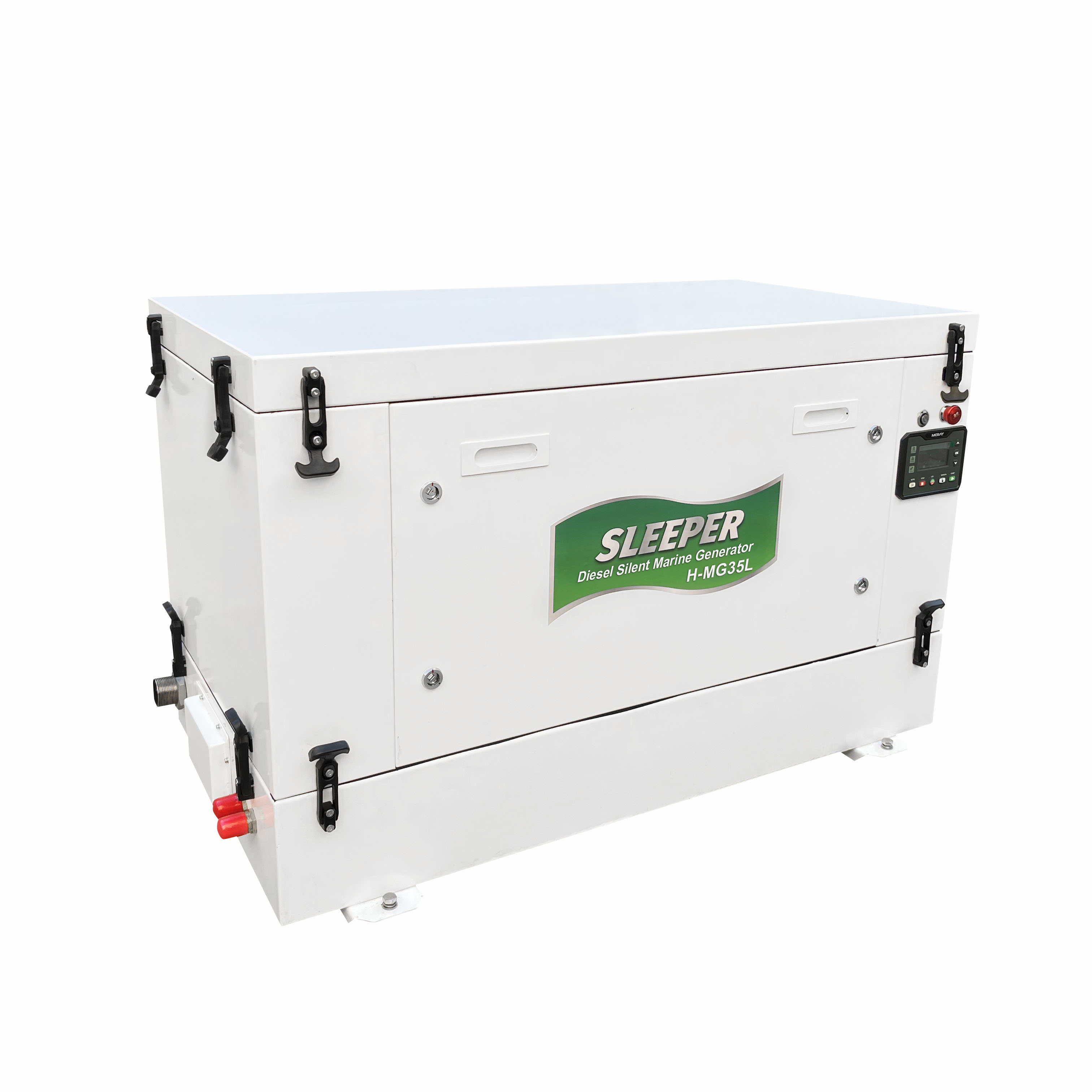

SLEEPER H-MG35L Marine Generator Specification
Generator
Model	H-MG35L
Dimensions（LxWxH)(mm)	1340x680x900
Net weight(Kg)	550
Noise(dBa/7m)	51
Cooling system	Dual circuit freshwater cooling via heat exchanger
Performance
Frequency(Hz)	50 / 60
Output Voltage(V)	230 / 120 / 400
Voltage stability	≤3%
Frequency Stability	±1Hz
Maxl power (kVA)	35kVA
Continuous power(kW)	30
Voltage regulation	Electronic
Frequency regulation	Electronic
Control
Start system	12VDC
Auto start	Integrated
Control panel	Digital display control（DDC local + DDC remote）
Engine
Engine brand	YANMAR (KUBOTA)
Engine model	4TNV98T
Cylinder	4 cylinder
Displacement(cc)	3319
Speed(rpm)	1500/1800
Fuel	Diesel
Consumption（L/hr）	1.5-9
Oil capacity(L)	10.5

Sleeper

About Sleeper Generator

Sleeper Generator is professional China H-MG35L suppliers and ODM H-MG35L company.Sleeper Generator has made generators which stand out for quiet sound levels, super compact size, light weight, high efficiency and innovative and elegant design. Our proprietary Inverter technology enables us possible to build the smallest, lightest and quietest generators in the world that are ideal for installation on vehicles or boats. Sleeper generator has a product range from 2-200KW and they are used worldwide in places that are without normal electrical power. This includes onboard motorboats/yachts, commercial vessels, many types of vehicles , in remote locations and military.
