Marine Inverter Diesel Generators

H-MG25i Super Silent 20kW Marine Generator

With an 20kW power output, our generator stands ready to fuel your maritime adventures with an abundance of energy. xperience tranquility like never before with our advanced noise reduction technology. The Super Silent 20kW Marine Generator's meticulously engineered design, along with specialized soundproofing materials, guarantees an almost whisper-quiet operation, preserving the serenity of your maritime environment.

CONTACT US
  • description
  • message to us
  • FAQ
  • DOWNLOAD

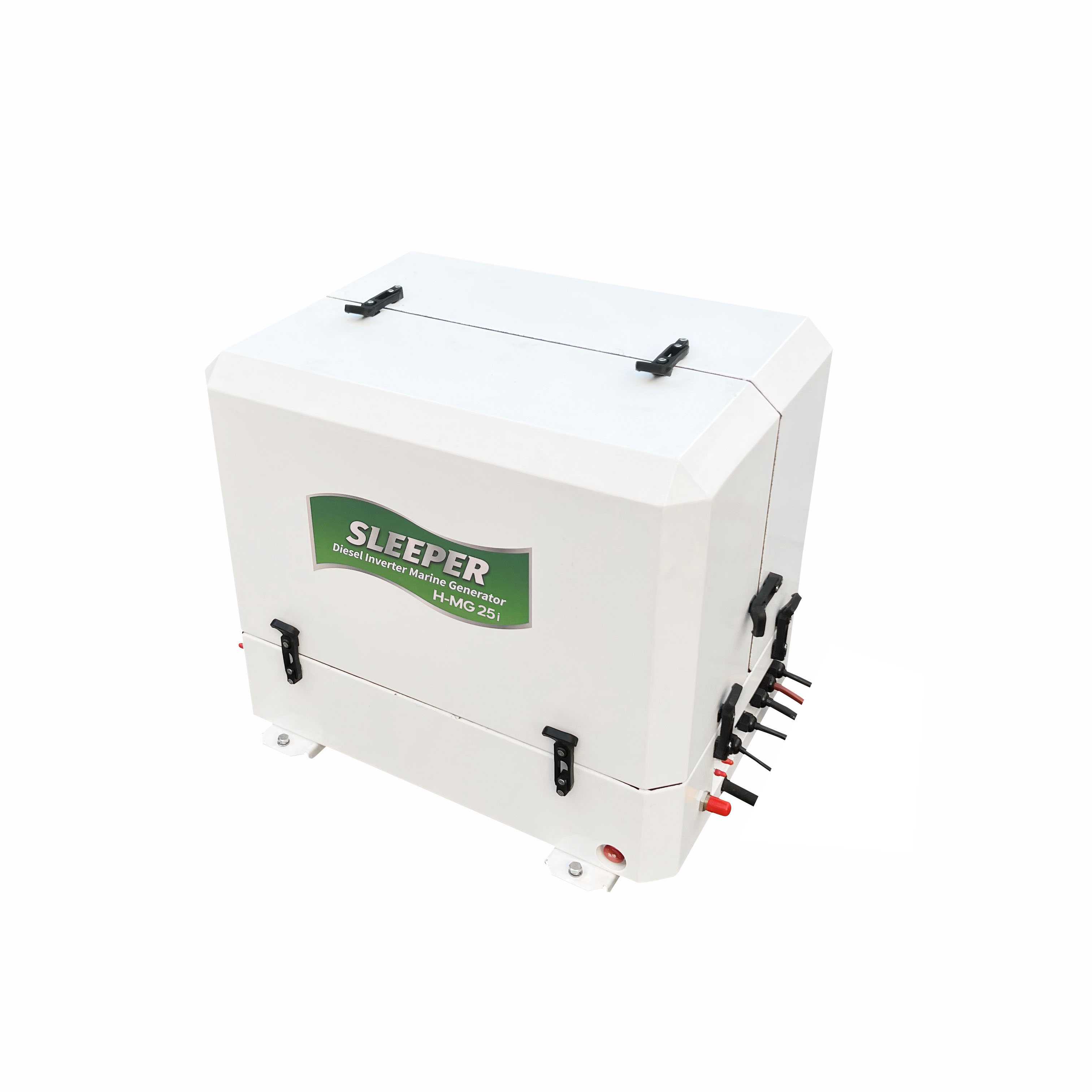

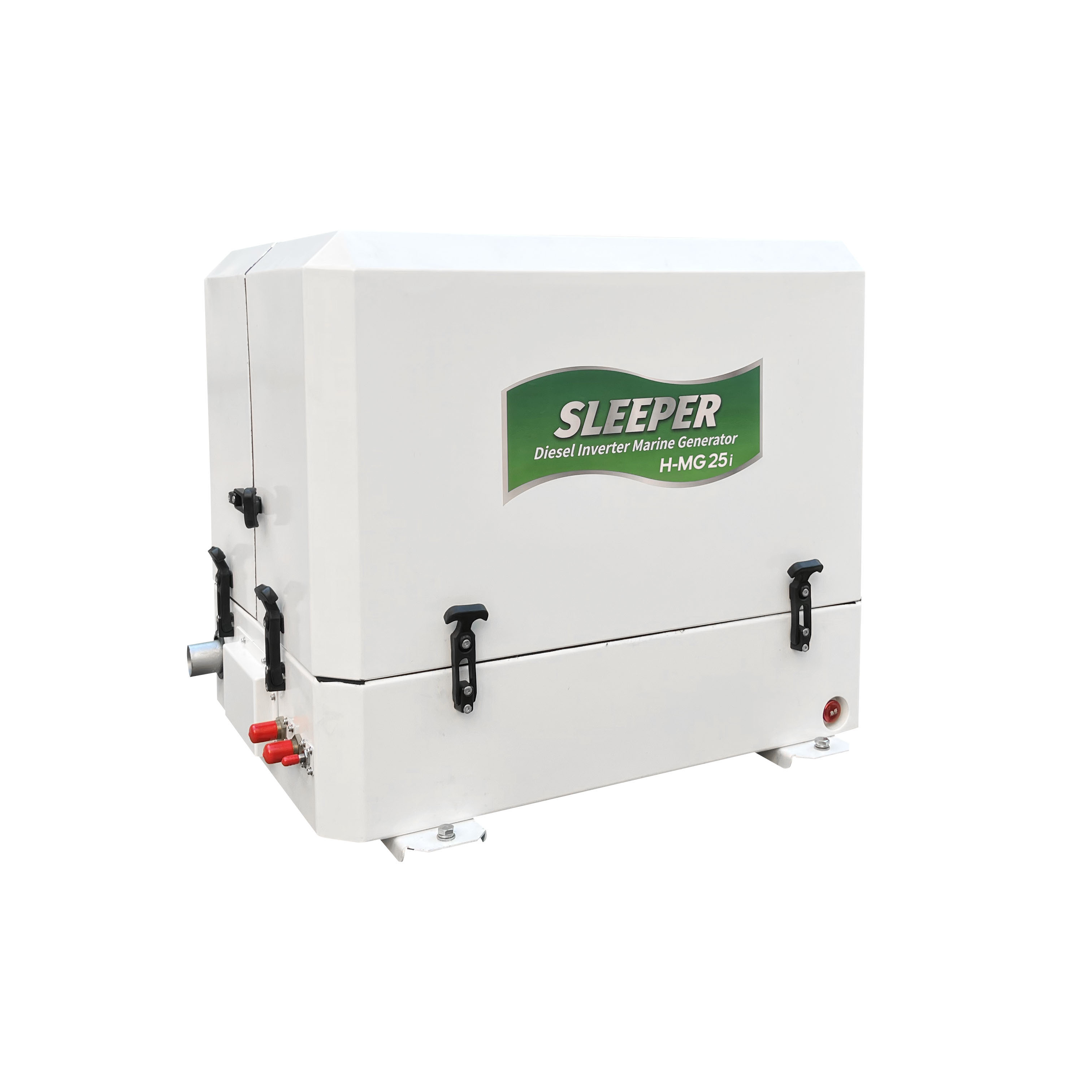

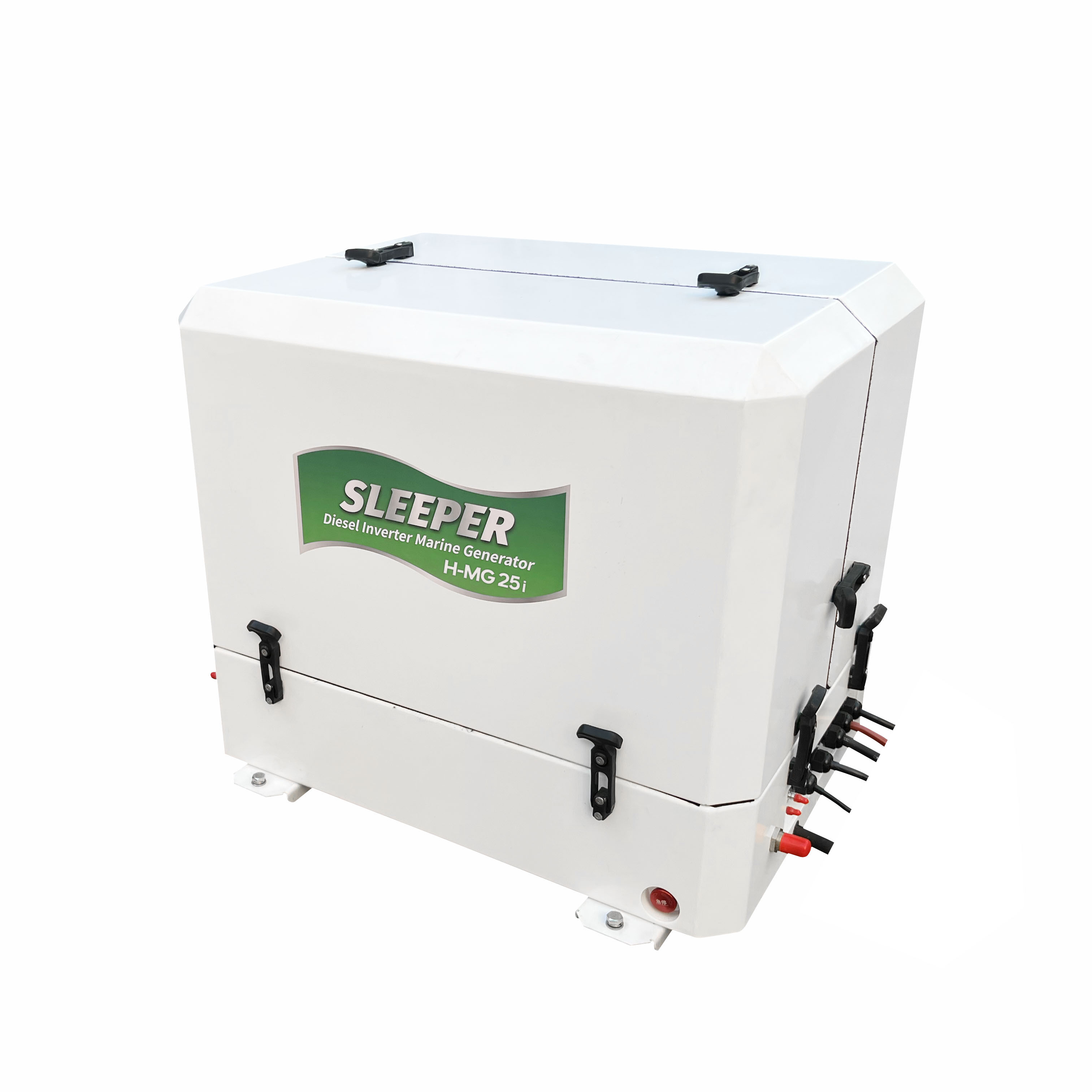

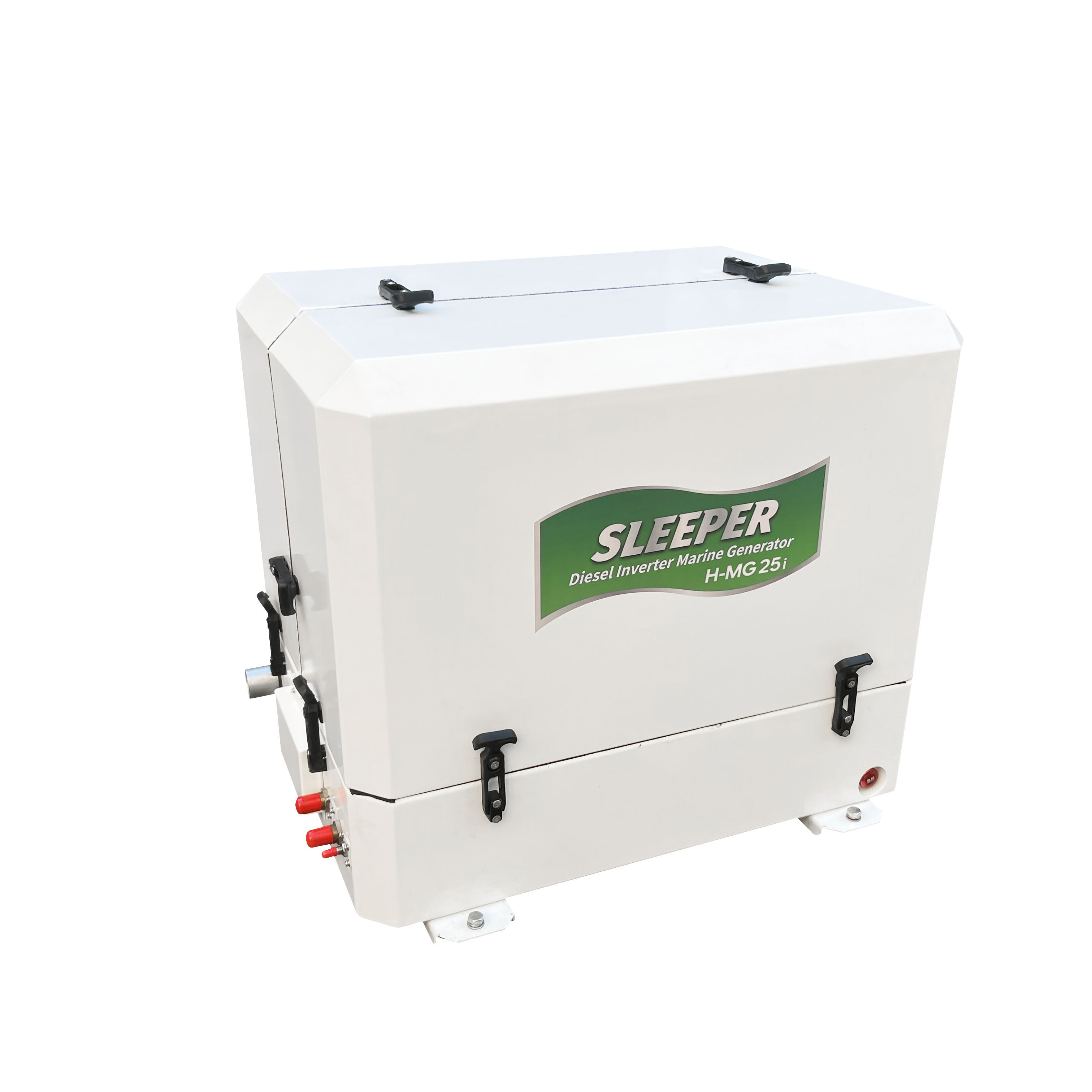

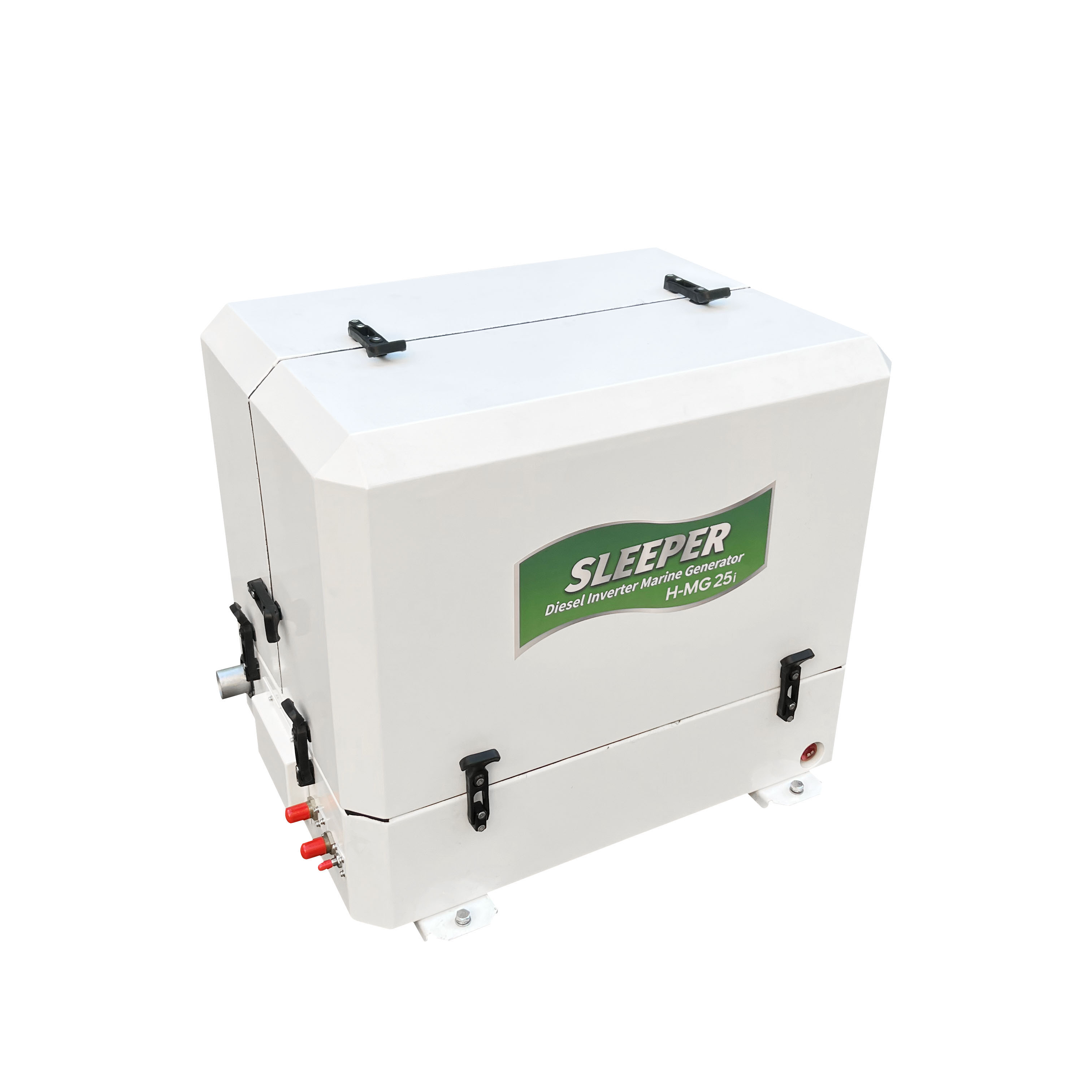

SLEEPER H-MG25i Diesel Inverter Marine Generator

Thanks to the PMG inverter technology, the Sleeper generator H-MG25i is possible to be made into the smallest, quietest and most powerful of its kind. It delivers the ideal power quality for all on-board appliances such as air-conditioning system, washing machine, cooking devices, battery charging and other AC powered devices. The sleeper generators are 100% water-cooled and equipped with the highly regarded sound insulation. They are specially designed to be light and compact, up to 30% weight and space savings.



Product Features

l Reliable Yanmar or Kubota 4 cylinder water-cooled diesel engine ensure product reliability

l High efficient water-cooled permanent magnet alternator technology

l Extremely compact size and light weight for installation

l Extremely silent by aluminum composite material cabinet

l Virtually vibration free

l Outstanding voltage stability and pure sines wave are ideal for sensitive electronics

l Inverter technology saves fuel about 30% and environmentally friendly

l Local and remote digital display control panel with highly intelligent multi-function protection

l Parallel technology enables more power and cost saving

SLEEPER 20kW Marine Generator Specification
Generator
Model H-MG25i
Dimensions(LxWxH)(mm) 930x590x690
Net weight(Kg) 275
Noise(dBa/7m) 54
Cooling system Dual circuit freshwater cooling via a heat exchanger
Performance
Frequency(Hz) 50 / 60
Output Voltage(V) 230 /120
Voltage stability ≤3%
Frequency Stability ±0.1%
Max power (kW) 22
Continuous power(kW) 20
Voltage regulation Electronic
Frequency regulation Electronic
Control
Start system 12VDC
Auto start Integrated
Control panel Digital display control(DDC local + DDC remote)
Inverter (with DDC local) PMG 25
Inverter weight (Kg) 21.5
Inverter dimensions(mm) 495 x 265 x183
Engine
Engine brand YANMAR
Engine model 3TNV88
Cylinder 3 cylinder
Displacement(cc) 1642
Speed(rpm) 2200-2800
Fuel Diesel
Consumption(L/hr) 1.5-6.8
Oil capacity(L) 6.7

Sleeper

About Sleeper Generator

Sleeper Generator is professional China H-MG25i Super Silent 20kW Marine Generator suppliers and ODM H-MG25i Super Silent 20kW Marine Generator company.Sleeper Generator has made generators which stand out for quiet sound levels, super compact size, light weight, high efficiency and innovative and elegant design. Our proprietary Inverter technology enables us possible to build the smallest, lightest and quietest generators in the world that are ideal for installation on vehicles or boats. Sleeper generator has a product range from 2-200KW and they are used worldwide in places that are without normal electrical power. This includes onboard motorboats/yachts, commercial vessels, many types of vehicles , in remote locations and military.
