Extremely Silent 3.5 kw Marine Diesel Generator is commonly used on boats, yachts, and other marine vessels to provide electrical power for various systems and appliances while they sailing out.A 3.5 kW generator is capable of producing 3,500 watts of electrical power. This power output is enough running essential systems on a boat, such as lighting, navigation equipment, communication devices, refrigeration, and small appliances.Diesel engines are generally more fuel-efficient than gasoline ones, leading cost saving over time. Diesel fuel is also readily available at most marinas and ports.The patented structural design and special materials used for the sound-proof shield effectively reduce noise and vibration, resulting in an extremely silent operation. This feature is important for onboard comfort and adhering to noise regulations.

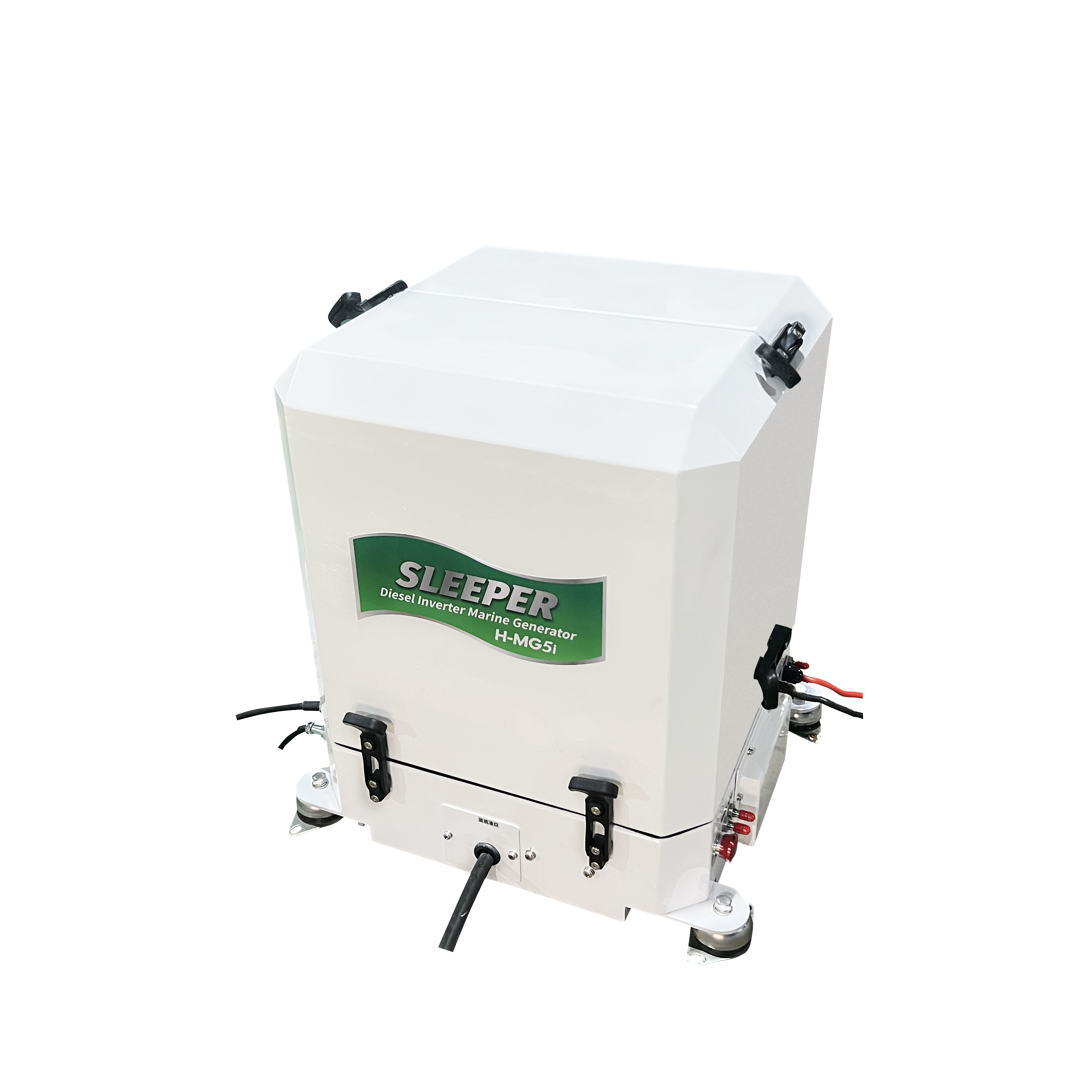

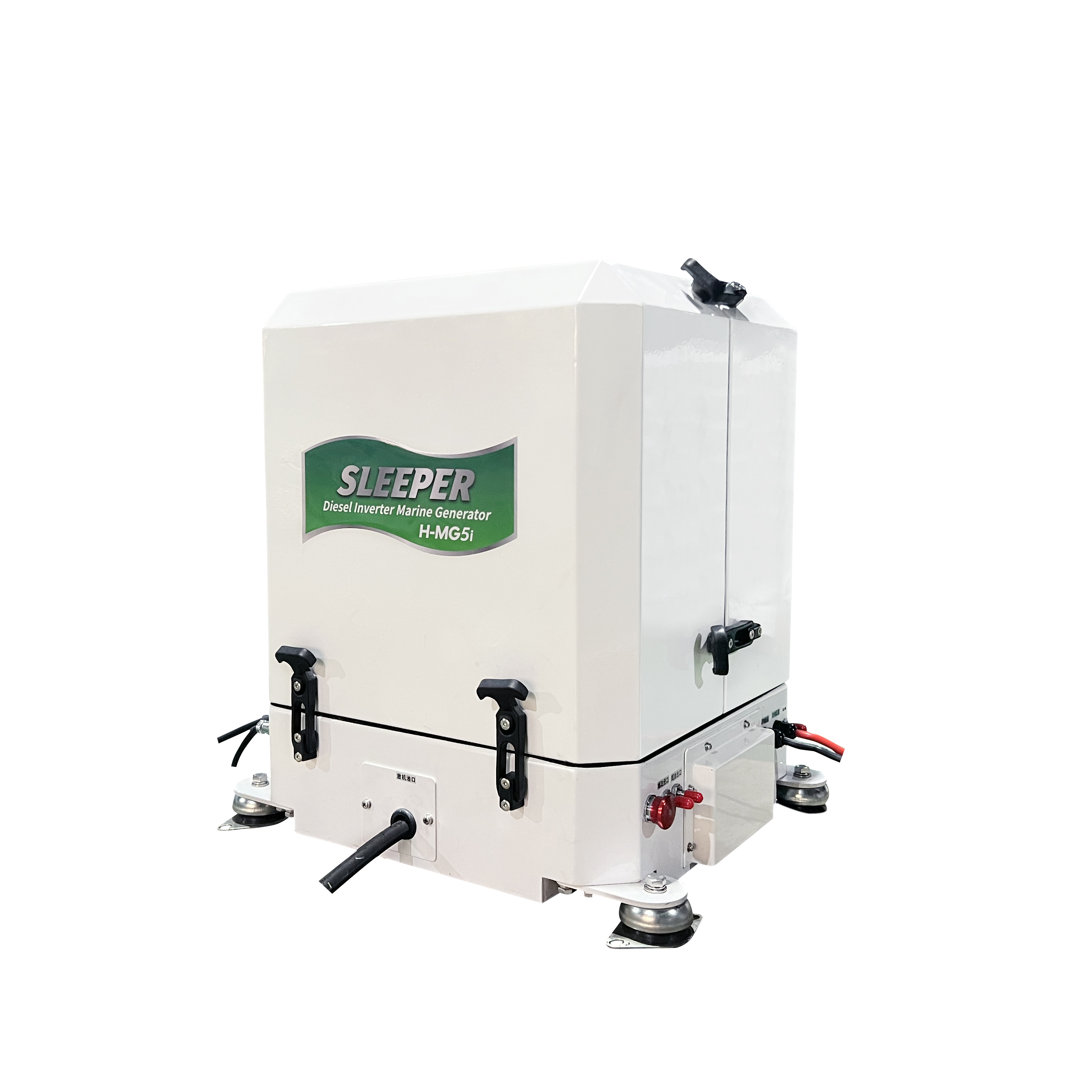

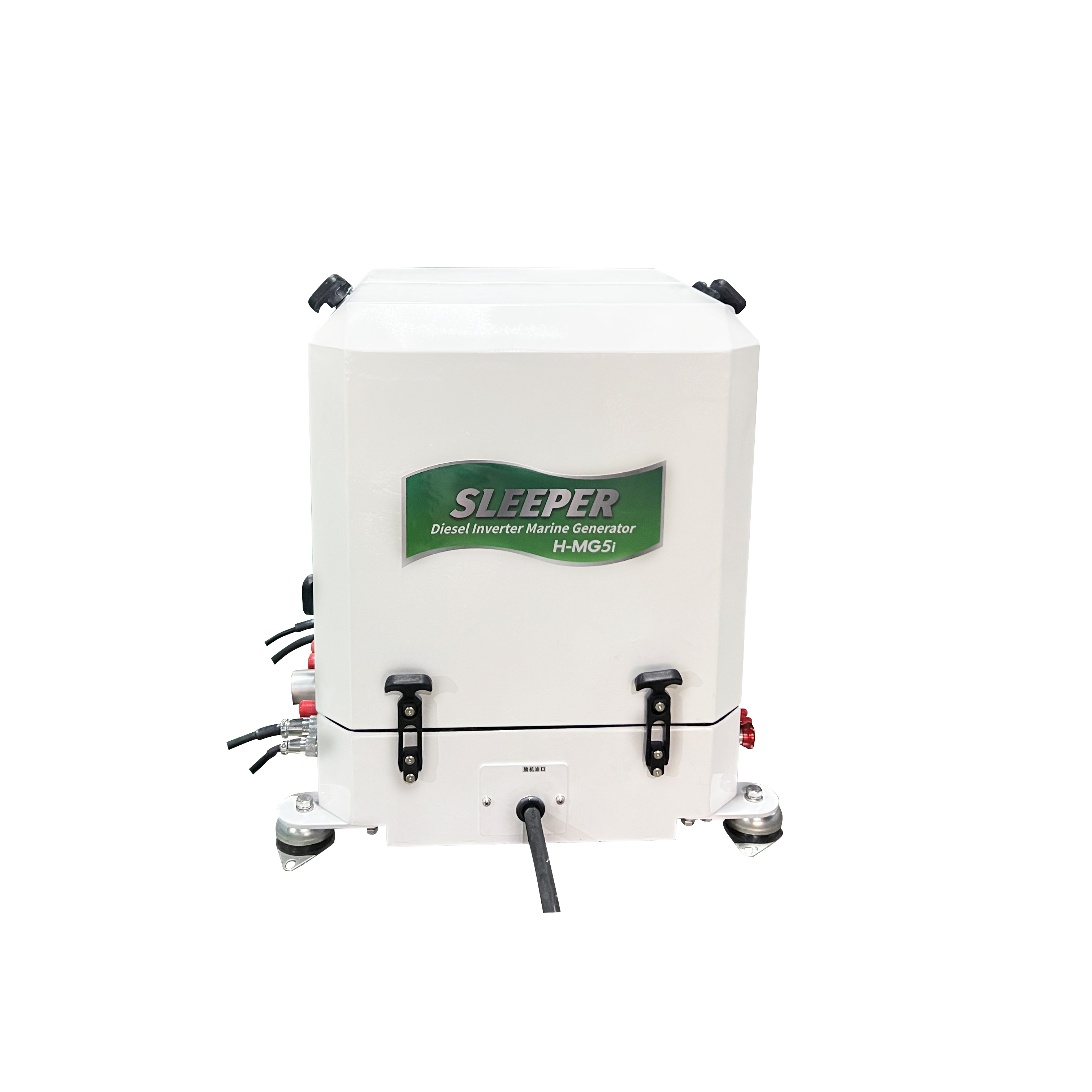

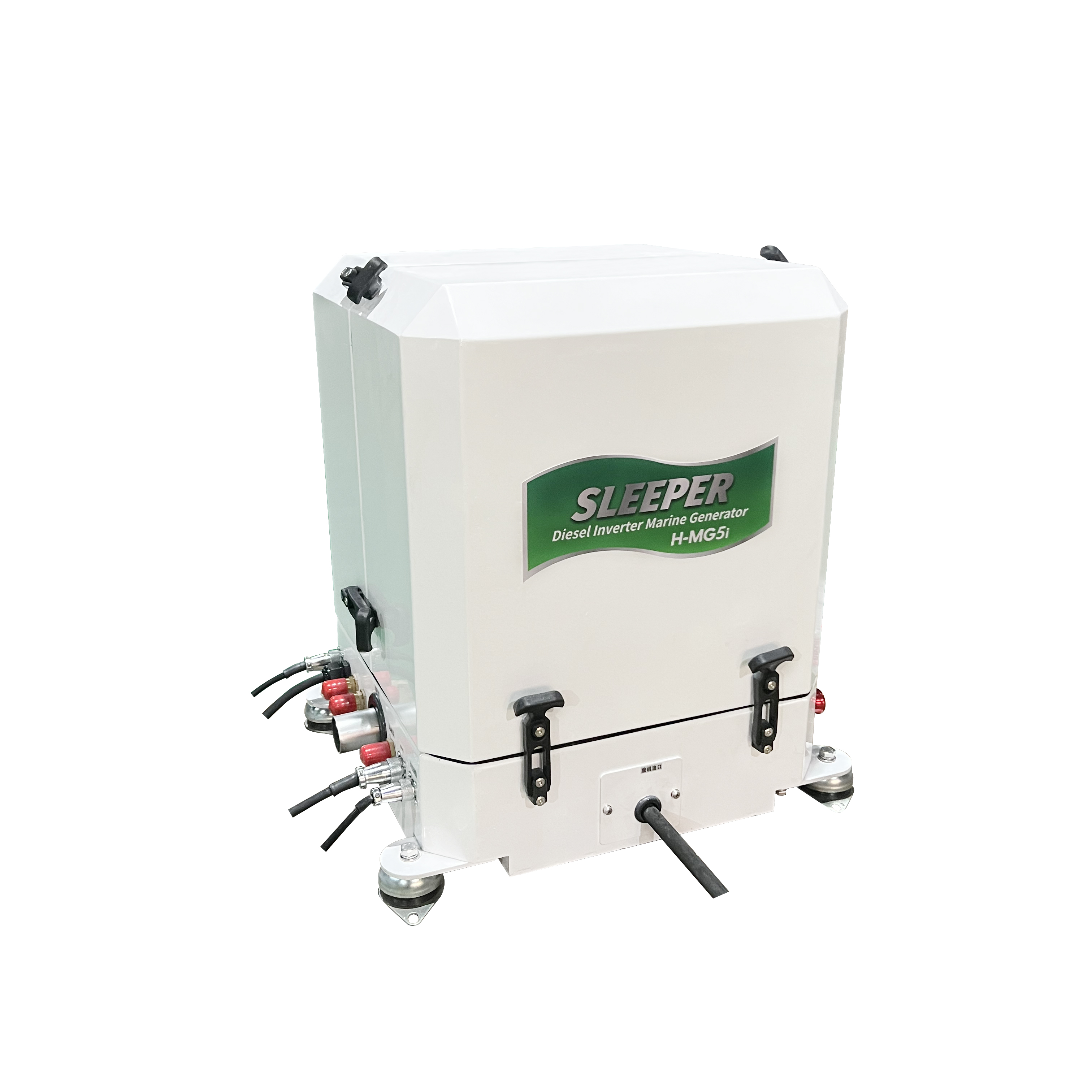

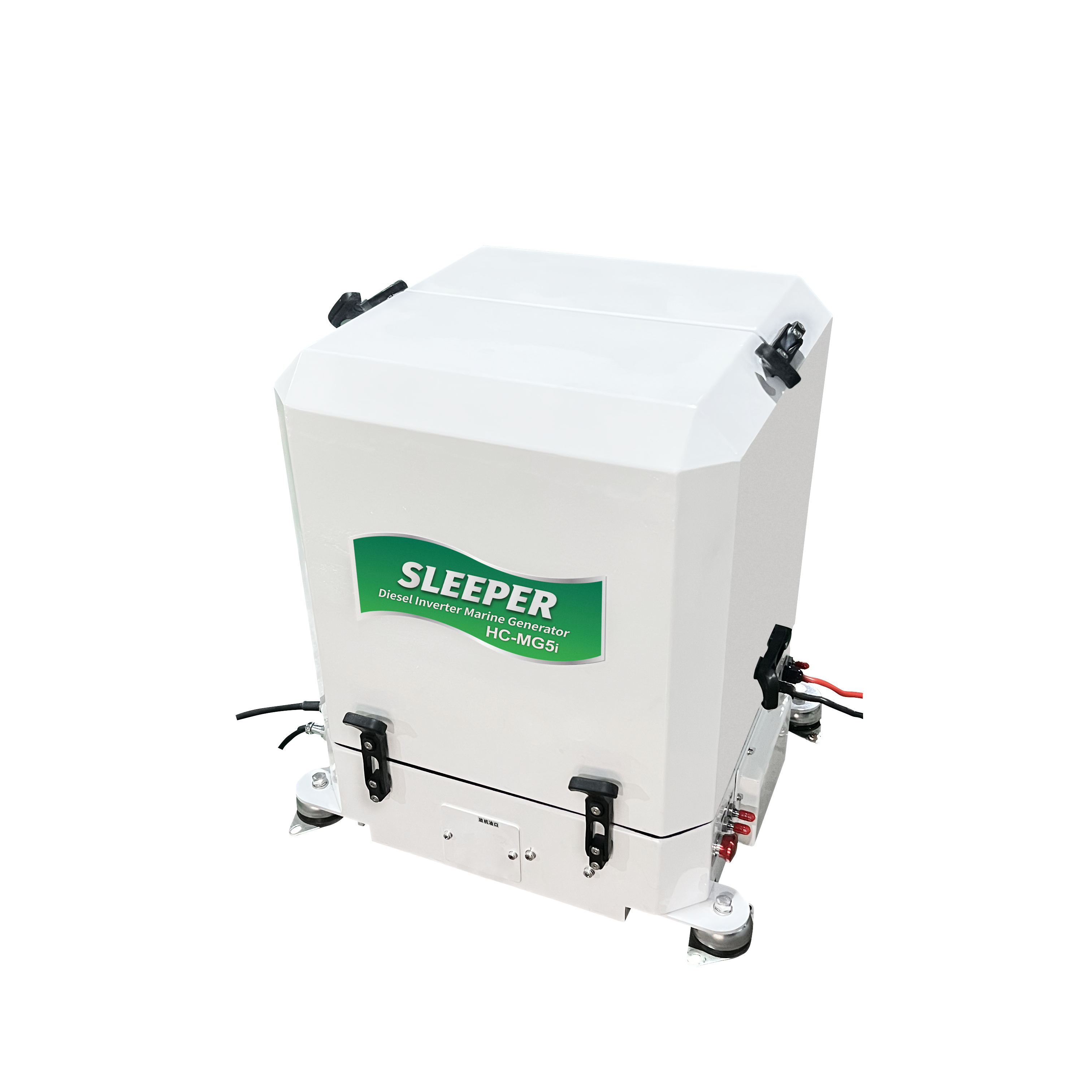

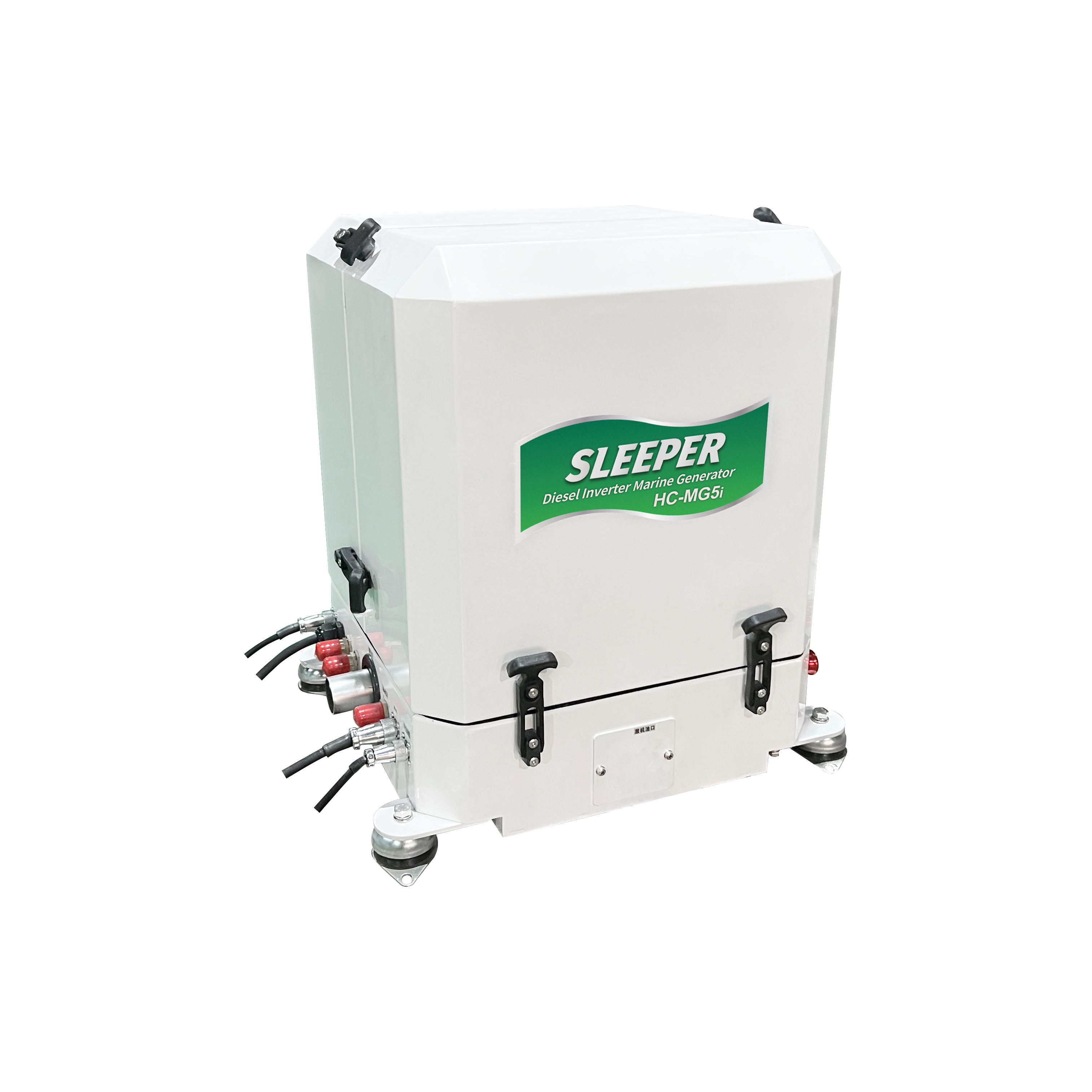

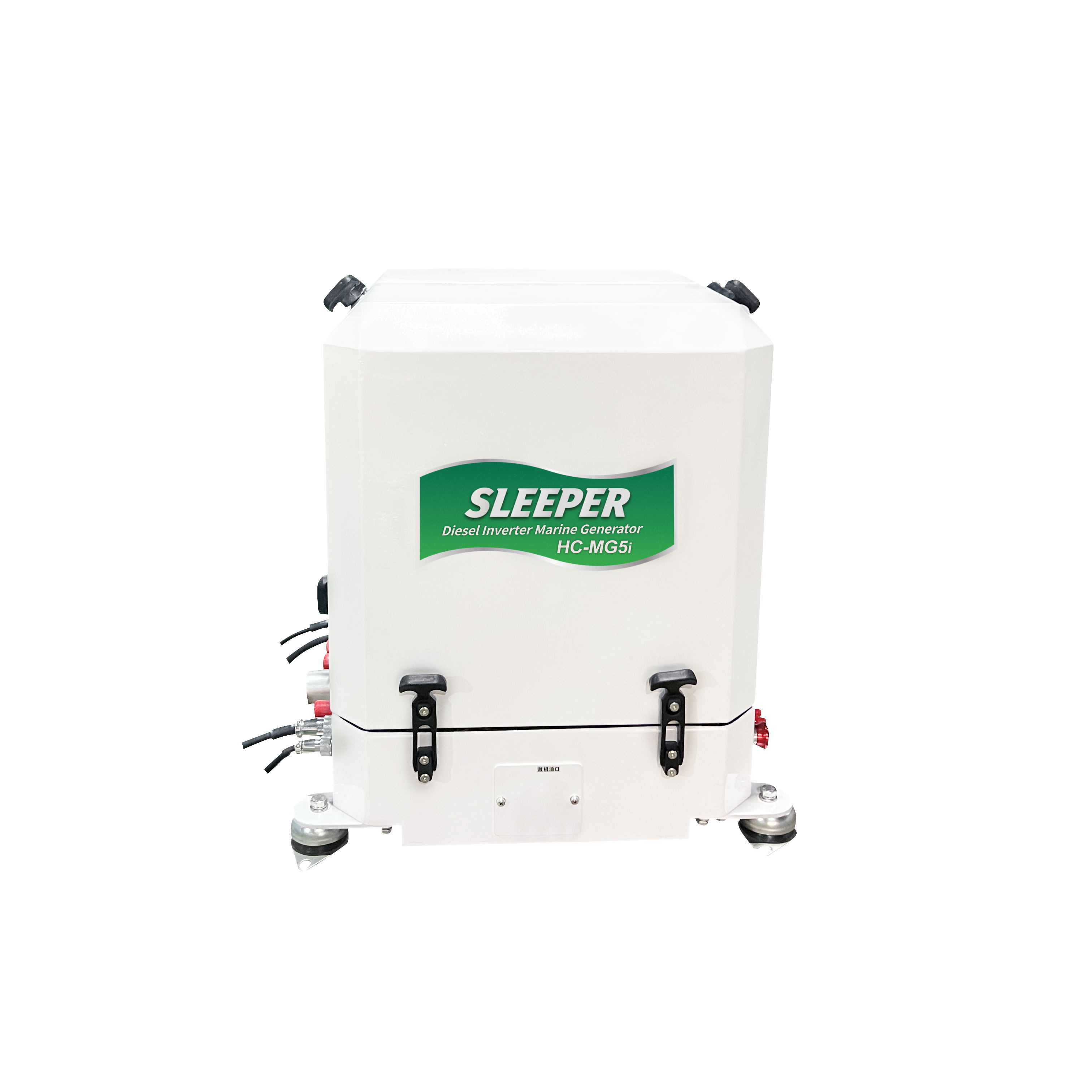

SLEEPER HC-MG5i Diesel Inverter Marine Generator
The Sleeper generator H-MG5i is the smallest, quietest and most powerful of its kind. Thanks to the electronic PMG inverter output, it delivers the idealest power quality for all your comfort equipments such as a washing machine, small air conditioning system, electrical cooking hob and battery charging devices. The sleeper generators are elaborated with highly regarded sound insulation materials and featuring an outstanding water-cooling-down circulation system. They are specially designed to be light and compact, achieving up to 30% weight and space saving.
Product features
l Reliable Sleeper water-cooling-down diesel engine ensuring product reliability
l Water-cooling-down permanent magnet alternator
l Extremely Silent - Patented structural design and special sound enclosure effectively reducing the noise and vibration
l Small size and light weight are maxiumumly suitable for onboard compact installation
l Eco-friendly - Inverter technology saves fuel about 30%
l Outstanding voltage stability and pure sines wave are ideal for sensitive electronics

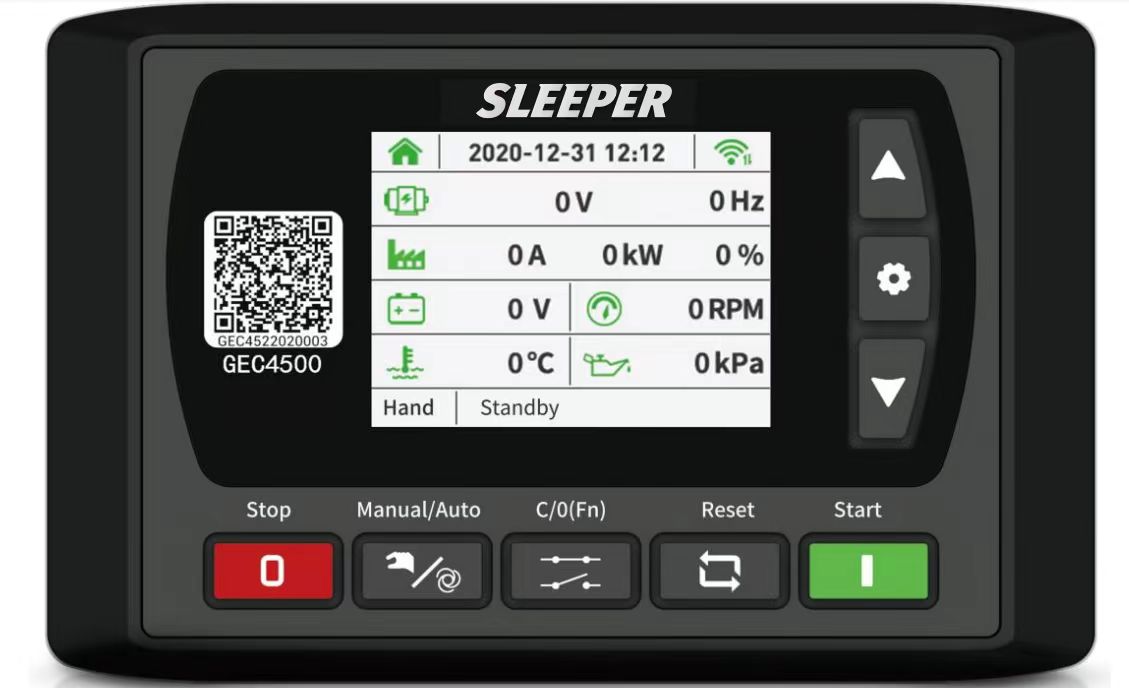

l Easy operation with local and remote digital display control panels and high intelligent multi-functional protection
l Parallel technology enables more power output and cost saving
l Convenient maintenance - one side maintenance services
SLEEPER HC-MG5i Marine Generator Specification
|
MAIN SPECIFICATIONS |
|
|
Model |
HC-MG5i |
|
Nominal voltage(V) |
230 / 120 |
|
Frequency(Hz) |
50 / 60 |
|
Number of phases |
1 |
|
Intermittent power(kVA/kW) |
4kW / 5kVA |
|
Continuous power(kVA/kW) |
3.5kW / 4.4kVA |
|
Noise(dBa/7m) |
53 |
|
Rpm range |
2400 - 3000 adjustable |
|
Cooling system |
Heat exchanger |
|
Harmonic distortion |
≤3% |
|
Frequency stability |
±0.1% |
|
Alternator technology |
Permanent Magnet |
|
Generator control |
PMG Inverter |
|
Inverter (with DDC local) |
PMGi 5 |
|
Control Panel |
Digital Display Control（DDC local + DDC remote） |
|
DIESEL ENGINE SPECIFICATIONS |
|
|
Engine model |
SLEEPER SP12 |
|
Engine power output |
8kW / 3000rpm |
|
Cylinder |
1 |
|
Displacement(cc) |
499 |
|
Bore x stroke（mm） |
92 × 75 |
|
Consumption（L/hr） |
0.8 - 1.3 |
|
Start battery capacity |
12VDC / 120Ah |
|
Starter battery charge method/ current |
Handy charger 12 V /7A |
|
Lubricant |
At least CF |
|
Oil capacity(L) |
1.65 |
|
DIMENSIONS & WEIGHT |
|
|
Cabinet weight |
91 kg |
|
Water inlet hose |
|
|
Ø40mm |
|
|
Fuel Hose |
Ø 8mm |
|
Siphon breaker |
Ø19mm |
